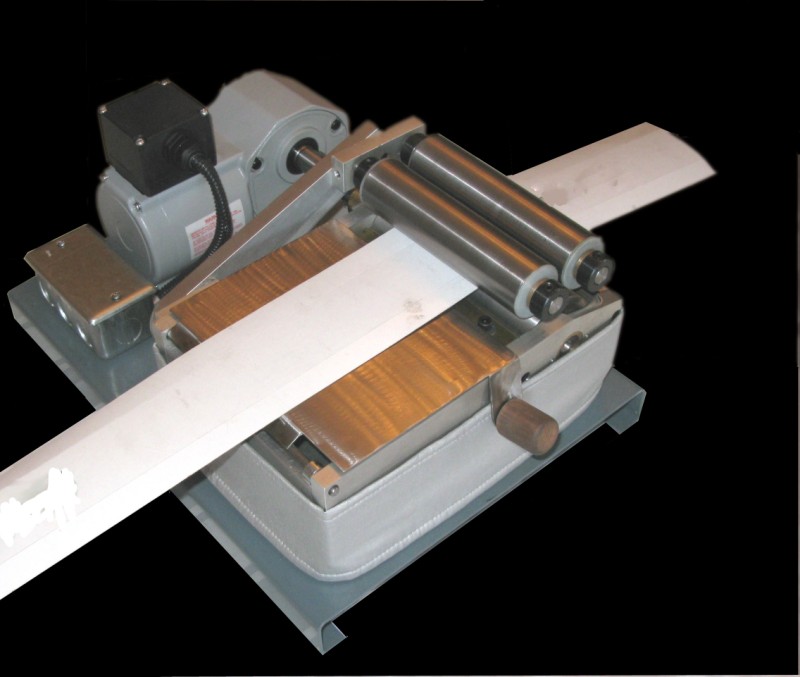

12" Datco Hot Roll Coater Filter Series

Average Leed time is approximately 5-10 days.

This machine has dual top hold down rollers mounted with single side arm which allows for margin gluing.

Commonly used for assembly of panel air filters.

The Hot Roll Filter Series comes in size 6″ and 12″ in length.

All Hot Rolls feature:

– 2 1/2″ diameter rolls
– Delta Microprocessor temperature controls with digital display
– Brother International AC gear motors
– Minarik VFD electronic variable frequency (variable speed) drives
– Under temperature protection (motor cannot start until up to temperature)

Specifications:
Weight:
6”: 45 lbs. (20 kilo)
12”: 55 lbs. (23 kilo)

Dimensions:
6”: 24”x12”x10” (60x30x25 cm.)
12”: 30”x12”x10” (76x30x25 cm.)

Reservoir Volume:
6”: 82 cu. in. (208 cu. cm.)
12”: 165 cu. in. (419 cu. cm.)

Roll Speed: 0-40 surface ft. per min. (0-12 meters per min.)

Temperature range: Ambient- 450 F (232 C)

Power supply: 6”-18” 120 or 240v

Optional Knurled Roller
