Definite Length Tape Dispensers

Definite-Length-Tape-Dispensers Tach-It Definite Length Tape Dispensers: These dispensers are designed to feed and cut either a pre-determined or random length of pressure sensitive tape. Available in manual and semi-automatic electric models, these dispensers have applications in a multitude of industries including; packaging, assembly, electronics, retail, industrial, food service, office and institutions.

TachIt/Model_5000.jpg
Model 5000 Dispenses 1-1/2" piece of tape
.
TachIt/SL-1.jpg
Model SL-1 for up to 1" wide tapes.
TachIt/SL-3.jpg
Model SL-3 for up to 3" wide tapes.
TachIt/6100-SS.jpg
Model 6100-SS for up to 2" wide tapes.
TachIt/6125.jpg
Model 6125 dual sensor dispenser
TachIt/6175.jpg
Model 6175 for up to 3-1/8" wide tapes.

Model Z-Cut 5 for tough tapes.
TachIt/6250.jpg
Model 6250 folds a tab on leading end.



TachIt/Model_5000.jpg

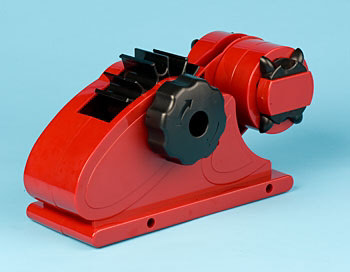

Model 5000 Definite Length Tape Dispenser

The Tach-It model #5000 definite length tape dispenser is perfect for applications where a fixed 1½ inch length of tape is needed. Usable with 1½ wide roll or 2½ wide rolls, by simply turning the large knob the model 5000 applies the tape to a star wheel for easy removal. Perfect for gift wrap, retail, and industrial applications where a 1½in? piece of tape is required, the model 5000 also has a separate free mandrel for unlimited lengths.

  • Length-8 1/2in., width-4in. - height-5 1/2in., weight- 1.5 lbs.
  • Core size- 3in., maximum width of tape - 1in.
  • Maximum dia. of tape roll -5in.

TachIt/SL-1.jpg

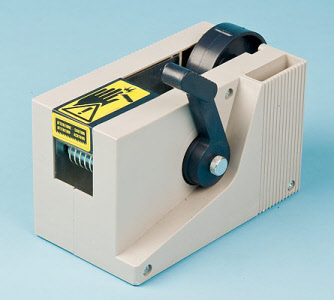

Model SL-1 Definite Length Tape Dispenser

This small manual bench top definite length tape dispenser accepts most tapes up to 1 inch wide with a maximum roll diameter of 5½ inch. A simple push on the smooth action lever will deliver up to 4? of tape. Longer lengths of tape can be achieved by multiple pushes of the lever. To change tape lengths just loosen the thumb screw holding the lever, move the lever to the desired position and retighten the thumb screw. Cutting of the tape is done as the operator removes the tape from the machine.

  • Length -7 1/2in., width -4in., height - 4 1/2in., weight -3.75 lbs.
  • Core size -1in. or 3in., maximum width of tape - 1in.
  • Maximum dia. of tape roll - 5 1/2in.

TachIt/SL-3.jpg

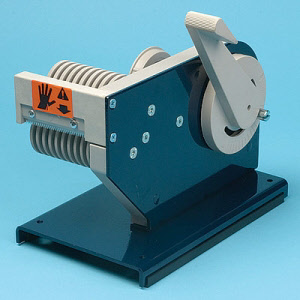

Model SL-3 Definite Length Tape Dispenser

For use with most types of tape, this heavy duty industrial manual definite length tape dispenser can handle tape up to 3? wide. An easy push on the smooth action lever will deliver up to 8 inch of tape. Longer lengths of tape can be achieved by multiple pushes of the lever. to adjust the tape length, simply loosen the thumb screw, move the lever to the desired position, and tighten the thumb screw. Cutting of the tape is achieved as the tape is removed from the machine.

  • Maximum Outside Diameter of Tape Roll 7½in.

TachIt/6100-SS.jpg

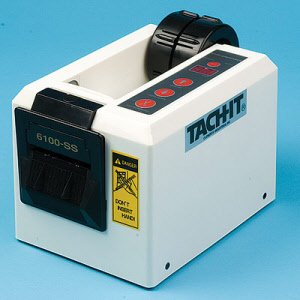

Model 6100-SS Definite Length Tape Dispenser

This automatic feed and cut definite length tape dispener can work with 1 roll of tape up to 2 inch wide or 2 rolls of tape each up to 1 inch wide. Reliable and easy to use with push button and led controls, this dispenser can cut most types of pressure sensitive tape from 3/4 inch to 39 inch inch length. In automatic setting the model #6100-ss will feed the next piece of tape as soon as the preivous one has been removed. Simply holding the feed button will allow for andom lengths of tape to be fed. Small bench top design, exclusive safety shield to protect the operator and adjustable tape pressure to ensure positive tape feeding are all advantages of this machine.

  • Core Size 3in., Maximum Width of Tape 2in.



TachIt/6125.jpg

Model 6125 Definite Length Tape Dispenser

The Tach-It model #6125 can cut filament, kapton, acetate, glass cloth, double sided and most other types of tape up to 2 inch wide. Dual sensors allow the model #6125 to work with 1 roll of tape up to 2 inch wide or 2 rolls of tape up to 1 inch wide each, the unique cradle device means that this machine can work with any core size tape and large roll sizes. Able to work with both pressure sensitive and non-pressure sensitive items, the model #6125 has both manual and semi-automatic modes, is small and compact and has an easy to use control panel with led indicators.

  • Length 8in., width 5in., height 5in. weight 7 lbs.
  • Core size - not applicable due to special cradle design.
  • Maximum width of product - 2in.
  • Maximum dia. of roll - 14in.
  • Power -110 volt

TachIt/6175.jpg


6175 - Definite Length Tape Dispenser

Able to feed and cut virtually any type of tape from 2 1/4in. to 3 1/8in. in wide and up to 39.3in. in length the Tach-It Model #6175 Definite Length Tape Dispenser has a small compact bench top design, easy to set push button length adjustment and LED screem for viewing of the set length.  Heavy Duty steel construction the Model #6175 offers an automatic clean guillotine cut, has a unique cradle style tape roll holding system allowing it to work with any size tape core and is easy to load and use without any operator training or tools.  The Model #6175 utilizes our exclusive  tri-mode automatic setting feature which allows the operator to dispense a random length of tape, dispense a pre-determined length of tape at the push of a button or dispenses a pre-determined length of tape as the previous cut piece of tape is removed from the machine.

  • Machine Length: - 9" (229mm), Width: - 7.5" (191mm), Height: - 6" (153mm). Weight: - 11.5 lbs (5.2 kgs)
  • Maximum Tape Width: - 3 1/8" (80mm), Minimum Tape Width: - 2 1/4" (57mm)
  • Maximum Tape Length: - 39.3" (999mm), Minimum Tape Length: - 1" (25.4mm)
  • Core Size: - Not Applicable
  • Maximum Tape Roll Diameter: - 11.75" (300mm)
  • Power: - 110 Volt 50/60 Hz (220 Volt available)



TachIt/Z_Cut_5.jpg



Definite Length Tape Dispenser Z-CUT5

Designed for continuous high productivity industrial applications, the Tach-It Z-Cut 5 Heavy Duty Definite Length Tape Dispenser is able to feed and cut the hardest types of tapes to dispense including; vinyl, duct and carpet tapes.  The Z-Cut 5 is easy to use with a dial to control the tape length and an easy to read LED.  OUr Z-Cut 5 utilizes our exclusive tri-mode automatic setting feature which allows the operator to feed and cut the tape to a random length, to have pieces of tape dispensed and cut to a pre-determined tape by pressing a button or have the tape dispensed as the previous piece of tape is removed.  Able to feed tape lengths from 2in. to 51in. the Z-Cut 5 has durable all steel construction, is easy to load and requires no operator training and has a large 7.5in. tape roll capacity.

  • Machine - Length: 10.75in. (270mm), Width: 6.25in. (155mm), Height: 8in. (205mm).  Machine Weight: 13.5 Lbs (6 Kgs).
  • Maximum Tape Width: 3in. (76mm).  Minimum Tape Width: 5/8 (15mm).
  • Maximum Tape Length: 51in. (1300mm).  Minimum Tape Length: 2in. (50mm).
  • Core Size: 3in. (76mm).
  • Maximum Tape Roll Diameter: 7.5in. (190mm).
  • Power 110 Volt 60 Hz 1 Phase 50 VA (230 V 50 HZ 1 Phase 50 VA available.

TachIt/6250.jpg

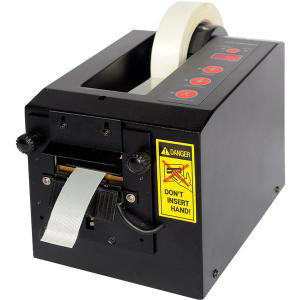

Definite Length Tape Dispenser-6250

Ever wish you had a machine that could place a 3/8in. long fold on a piece of tape for ease of remove from a product, now Tach-It has this machine, our Model #6250.  Used for the packaging of electronic and consumer goods, the Tach-It #6250 creates a tabbed piece of tape and then dispenses and cuts it to either a pre-determined or random length.  The Model #6250 can feed virtually any type of packaging tape up to 2in. wide, has a small compact design and utilizes our exclusive tri-mode automatic setting feature which allows the operator to dispense a random length of tape, dispense a pre-determined length of tape at the push of a button or dispenses a pre-determined length of tape as the previous cut piece of tape is removed from the machine.

  • Machine - Length: 10in. (254mm), Width: 5.75in. (146mm), Height: 7in. (178mm).  Machine Weight: 9.5 Lbs (4.3 Kgs).
  • Maximum Tape Width: 2in. (50mm).  Minimum Tape Width (3/4in. (19mm).
  • Maximum Tape Length: 39.3in. (999mm).  Minimum Tape Length: 1in. (25.4mm).
  • Core Size: 3in. (76mm).
  • Maximum Tape Roll Diameter: 7.75in. (200mm).
  • Power: 110 Volt 50/60 Hz (220 volt available)



UW6-LUW6


Model UW6-LUW6 Definite Length Tape Dispenser Stand

The Tach-It UW6 is an unwind stand for large rolls of tape, labels, wire or any other product that needs to be unwound Able to work inch conjunction with our Tach-It pressure sensitive tape and label dispenses, the uw6 can hold a roll up to 6 inch wide with a maximum roll diameter of 17 inch. Heavy duty all steel frame uprights, non-slip feet or can be permanently mounted, easy to adjust with thumb screws and requiring no tools or operator training for setup or roll changes are all benefits of this unwind stand.

  • Length - 14in., width - 7in., height - 15in., weight - 11 lbs.
  • Core size minimum: .787in., core size maximum: not applicable
  • Roll width minimum: 1/8in., roll width maximum: 6in.
  • Roll dia. minimum: not applicable, roll dia. maximum: 17in.
