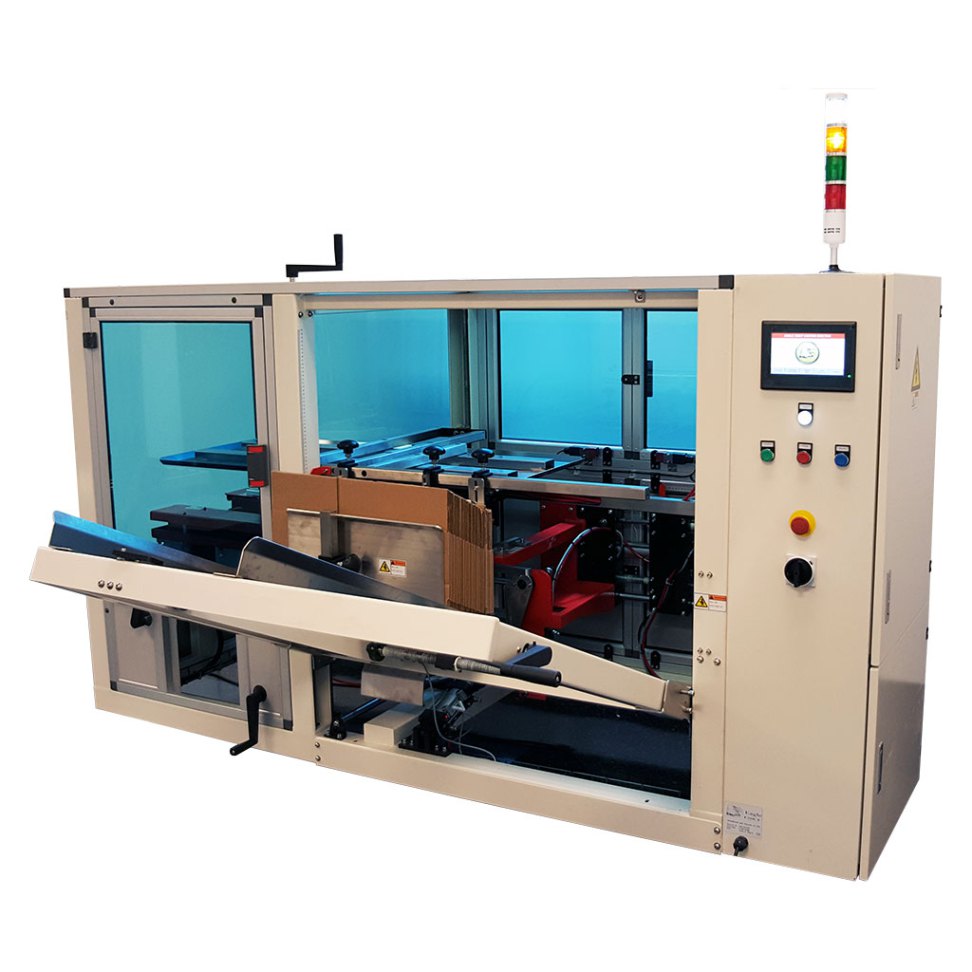

The Eagle T20CF constructs and seals the carton bottom cover during operation. Total process time per carton is only 3 seconds! With the vertical storage system, cartons can be added at any time without stopping the machine. The Eagle T20CF offers increased productivity and is suitable for various carton sizes and can be manually adjust in under 2 minutes.



Additional information

Power	110VAC, 50/60Hz
Air source	85psi, ≥0.6MPa
Tap Width	2in,50.8m/3in,76.2
Working Speed	0/12 cases/min.
Case Size	Length: 11-20.5in, 279.4-520.7mm, Width: 7-11in, 177.8-279.4mm Base carton size must meet the following requirement: 24in, 609.6mm > W/2+H > 11in, 279.4mm
Machine Dimensions	L86.6" x W80.7" x H53", L2422mm x W1963mm x H1615mm
Machine Weight	881.8 lbs., 400kg
Working Environment	Humidity: ≤90%, Temperature Range: 32-104ºF, 0-40ºC
Working Noise	≤75dB (A)
