pneumatic hot melt dispensing equipment Click on Image to Enlarge

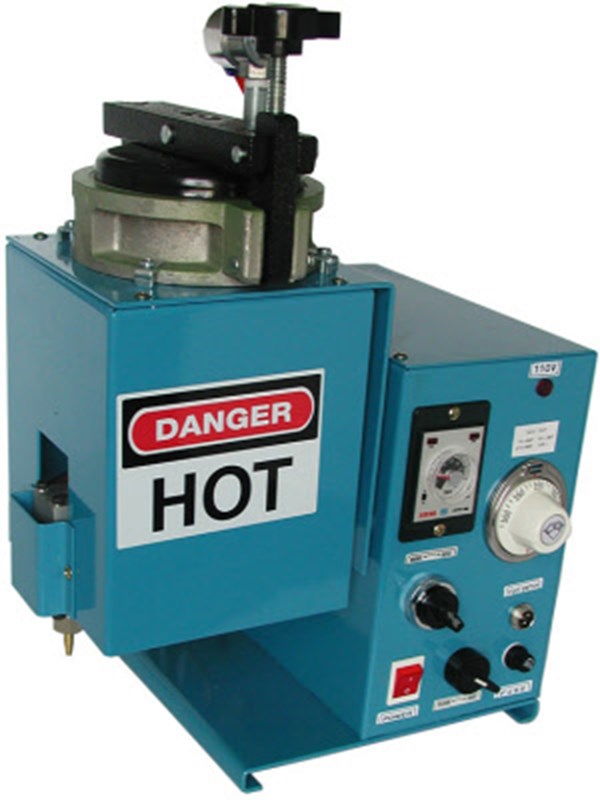

Model 753 Bulk Hot Melt Applicator

Product Number: 753
SKU: 753
$2,075.00 Save $287.00 (Reg. $2,362.00)
In Stock

Industrial pneumatic bulk applicator holds up to 2 pounds of hot melt adhesive. Time delay relay switch for the same amount of glue each time the foot treadle is depressed. Needle valve nozzle for complete shut off. Adjustable flow control switch. Ideal for pressure sensitive adhesives (peel-able) and EVA based adhesives.


Adjustable Temperature: 200°F to 500°F. ( 93°C. to 260°C.)
Watts Volts: 800 Watts, 120 Volts
Air Supply: 40 to 60 PSI
Adhesive Shape: Slats, Chips, Pellets, Bricks
Throat Depth: 6-1/2"
Dimensions: 18-1/4" High, 10-1/4" Wide, 8-3/8" Length
Weight: 35 Pounds
Tank Capacity: 2 Pounds
Viscosity Maximum: 20,000 CPS
Nozzles Orifices: .040", .080", .125"
Packaged: Box
Melt Rate: 5.5 lbs per hour
Flow Control: yes
Warm Up time: 20 minutes

Contact Star Packaging Supplies online or call 1-800-634-0901 for more information.
