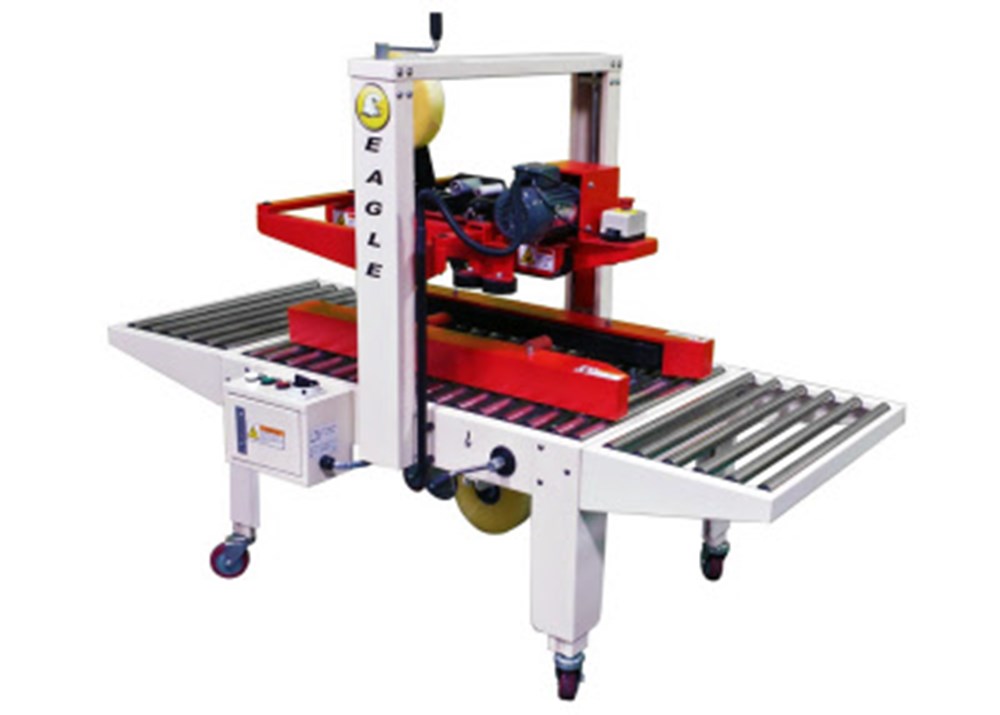

Eagle T200 Top and Side Belt Drive Carton Taper

The Eagle T200 takes the rigidity and simple design of the Eagle T100 and adds a set of top belts to stabilize tall, narrow cartons for proper sealing Side belt drive ensures proper carton sealing even with cartons that are short in height, but have an extended length.

• Top & Side Drive Belts
• Locking Casters
• Top Squeezers
• Dual Mast
• Top & Bottom Tape Heads
• Extension Roller Tables

Specifications:

Power Supply 110VAC/60Hz

Carton Size Length: 6.00" to Infinity Width: 6.75" to 19.75" Height: 4.25" to 19.75"

Tape Width 2" or 3"

Tape Length 1,000 yd to 2,000 yd

Max. Load 80 lbs

Machine Dim. (L × W × H) 38.2" x 35" x 50.3"

Shipping Weight 552 lbs

Sealing Speed 30 Cartons per minute

1 Year Warranty on parts

Available Options:

High Speed Motors
Roller Conveyer
Extended Working Height
Indexer
Hold Down Attachment
Low Tape Sensor
Broken Tape Sensor

Ships in 3-4 Days
