EdgeTec L-Clip Tape Applicators

EdgeTec L-Clip 200

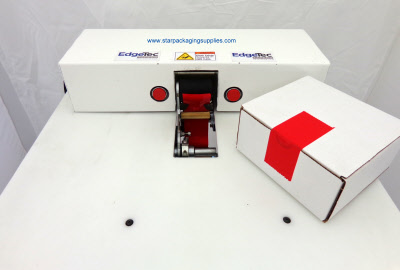

The L-Clip 200 applicator securely applies various widths of most types of packaging tape. The L-Clip 200 was designed with the operator in mind. Perfect for sealing all types of boxes and cartons. Operator places the product to be sealed on the table and pushes it forward against the activation buttons, this actuates the machine and the tape is applied to the product. The L-Clip 200 accommodates the widest range of tape widths in the industry, from 3/4 inches up to 3 inch wide carton sealing tape.

Also available with dual adjustable tape heads to apply two pieces of tape at once. (see below)

Standard Features:

26 Cycles Per Minute
2 Inch Tape Head
Standard 2-1/4" X 2-1/4" Tape Legs

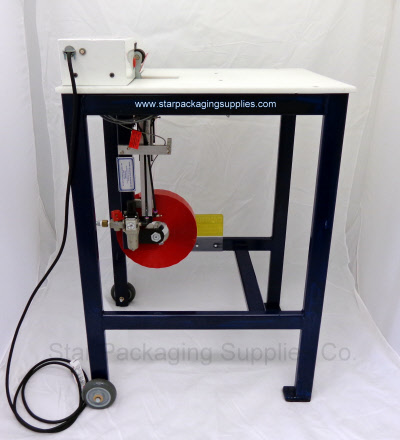

Heavy Duty Workstand
Handles Narrow Boxes - 5" Standard And 3" Available
Compatible With Many Types Of Tapes
Rear Mounted Casters
Uses 120 Volt Electric And Compressed Air (90 PSI)

Options:

Drop-In Table Mountable 14' X 20"
Filament/Narrow Tape Type Head And 3" Tape Head
Ball Tables Available For Heavy Boxes
Castors
Stainless Frame
Door Interlock
Multiple Tape Heads (Two Or More Tape Heads Units Available)

Multiple tape head models available. Tape head spacing can be adjusted to accommodate various width cartons.

Two Head Option:

Specifications:

Machine Height On Stand 31"
Work Station Size - 21" Wide X 27" Long
Minimum Tape Width ¾" - Maximum Tape Width 3"
120 Volt Electric And Clean Compressed Air (90 PSI)

Three Head Option:

This three headed tape machine can apply three l-clip pieces of tape at once or you can use the heads individually. The roller table helps to move heavy cartons to the tape heads with ease. The machine shown has 3" tape heads but can be supplied for 2" wide tape as well. Available in any number of tape heads. Custom configurations available.

Call or email for a custom quote: 1-800-634-0901 or starpkg@starpackagingsupplies.com
